Discover our products

Retrieval Tool Kit and Hot Tap Tool

The Retrieval Tool Kit is designed for safe and easy installation and removal of monitoring devices under full operational pressure.

Discover our products

Retrieval Tool Kit and Hot Tap Tool

The Retrieval Tool Kit is designed for safe and easy installation and removal of monitoring devices under full operational pressure.

Datasheet

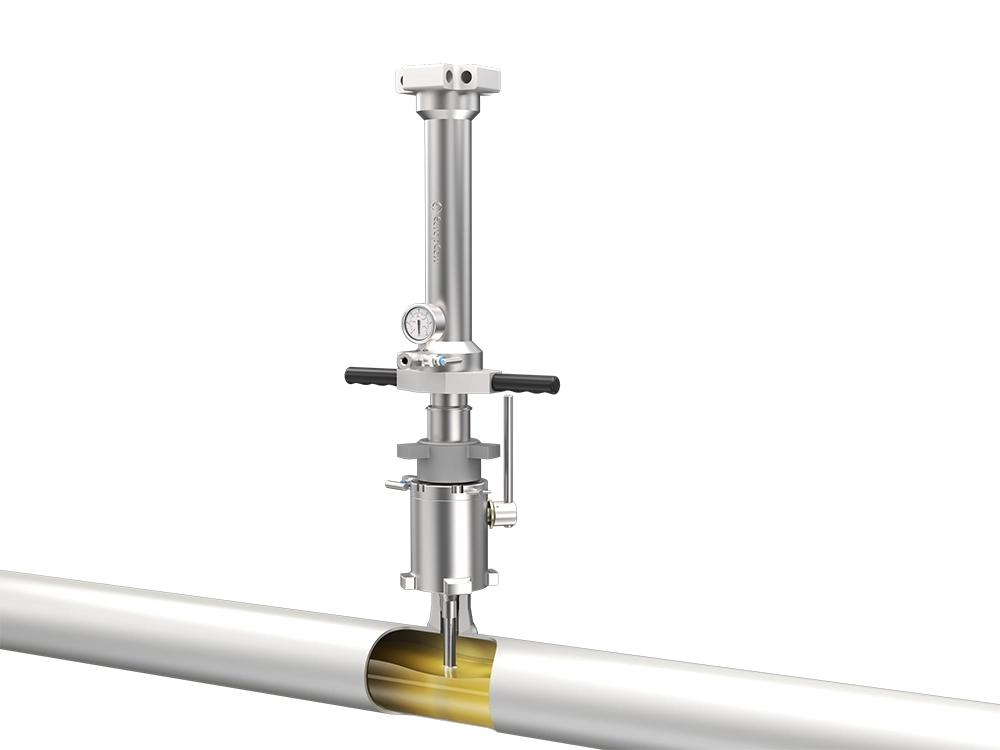

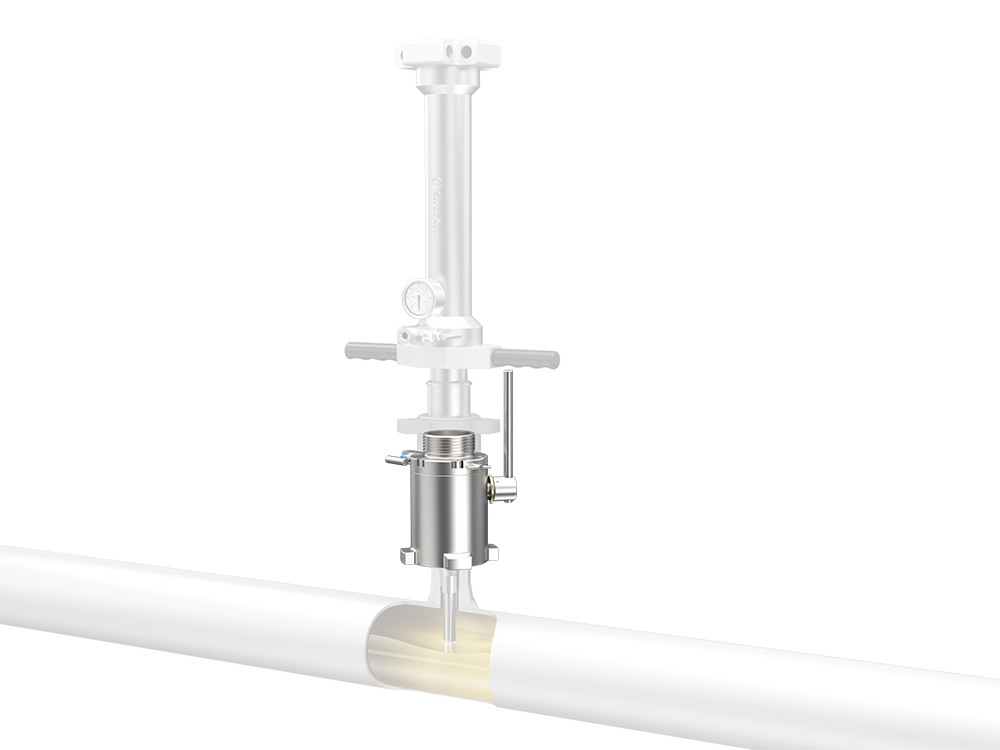

Mechanical System

Mechanical Retrieval Tool Kit is specially designed for safe and easy installation and removal of monitoring devices from pipelines and vessels under fulline pressure through a EuropCorr Mechanical Access System. This Kit is mainly composed of the Retrieval Tool and the Single or Double Service Valve. It is also supplied a Steel Brush, a Brass Hammer and a Purge Tube with Adapter, contained in a sturdy Field Service Box.

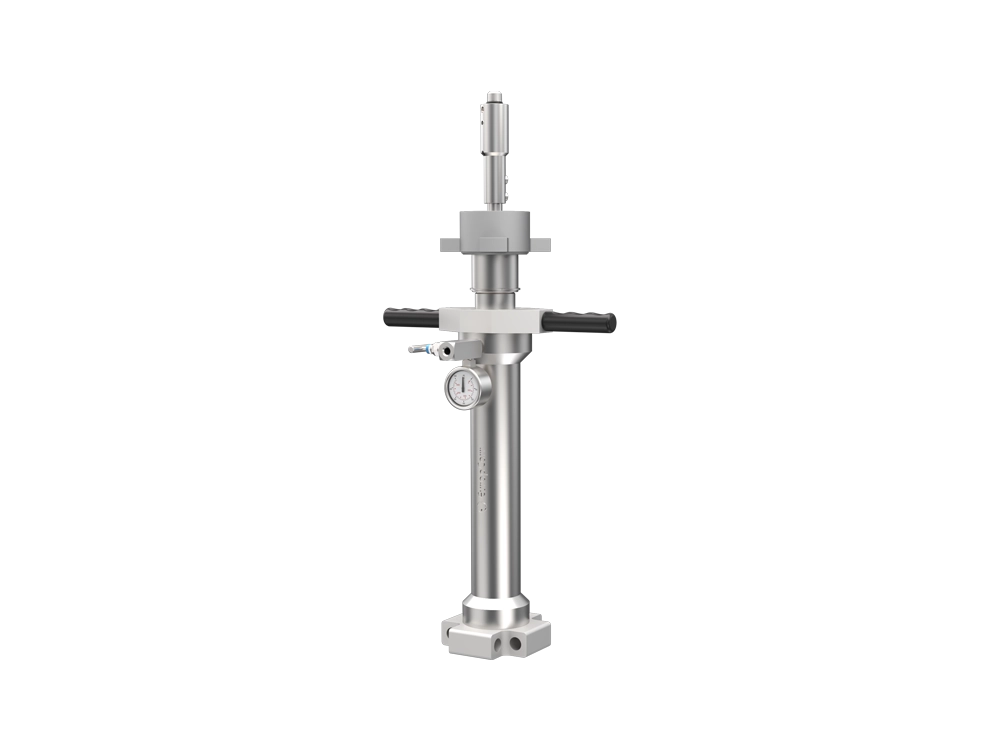

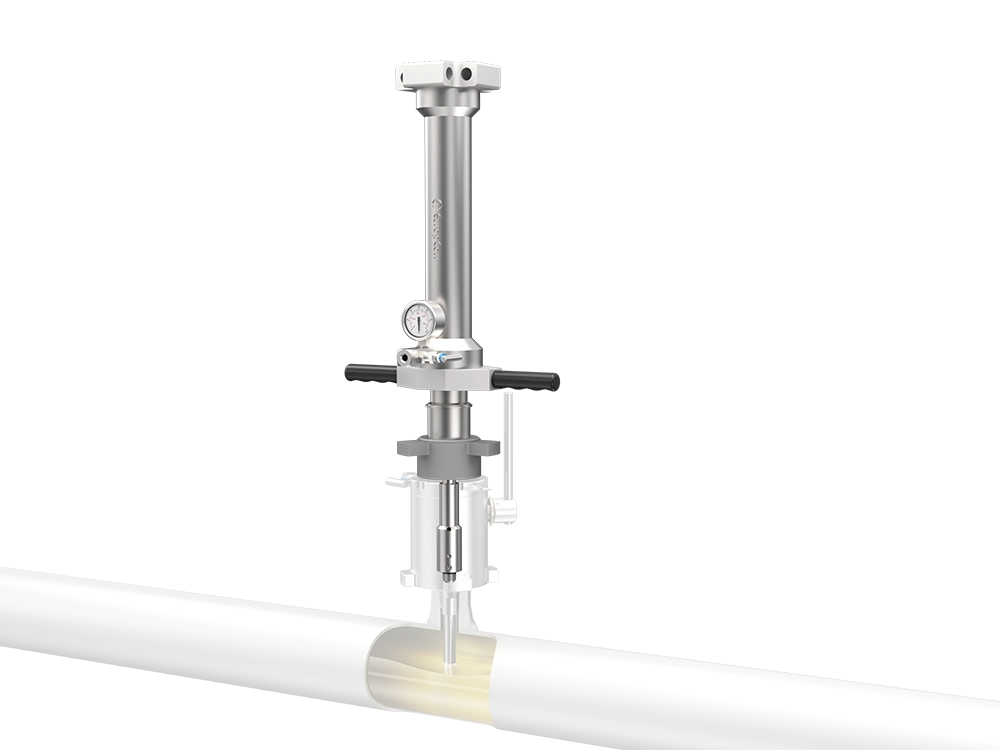

Mechanical Retriever
Mechanical Retriever
Mechanical Retriever

Mechanical Retriever

The Mechanical Retriever is a tool designed for servicing all kinds of monitoring devices and injection & samplings assemblies using traditional 2” Mechanical Access Fittings. Can be installed into or retrieved in normal operation, i.e. under full operational pressure.

Datasheet

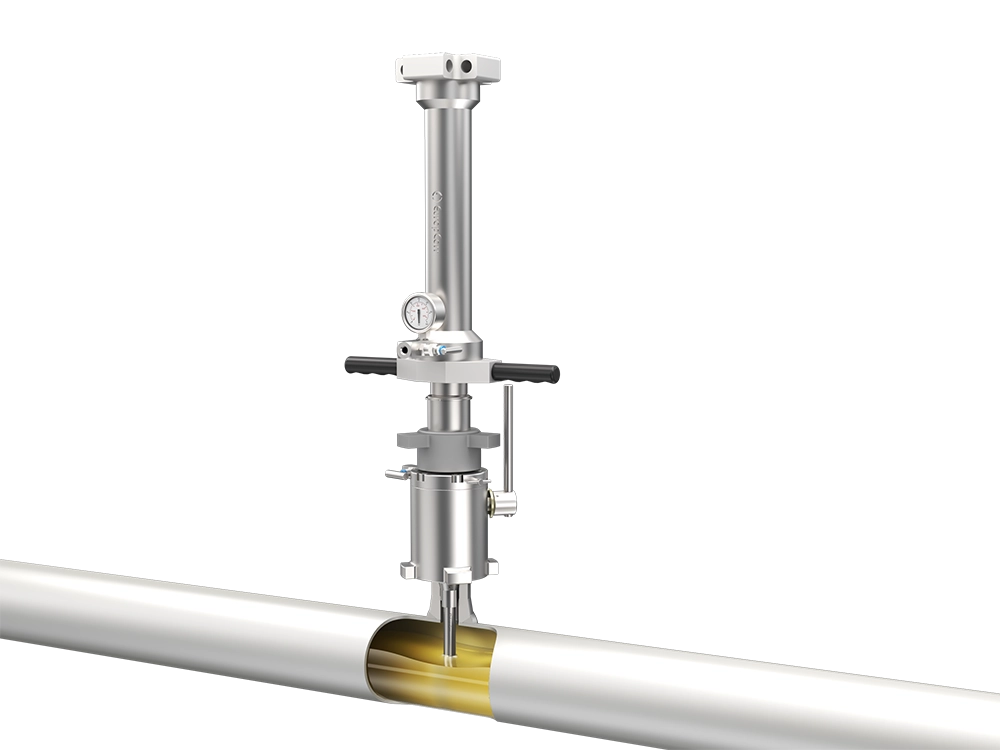

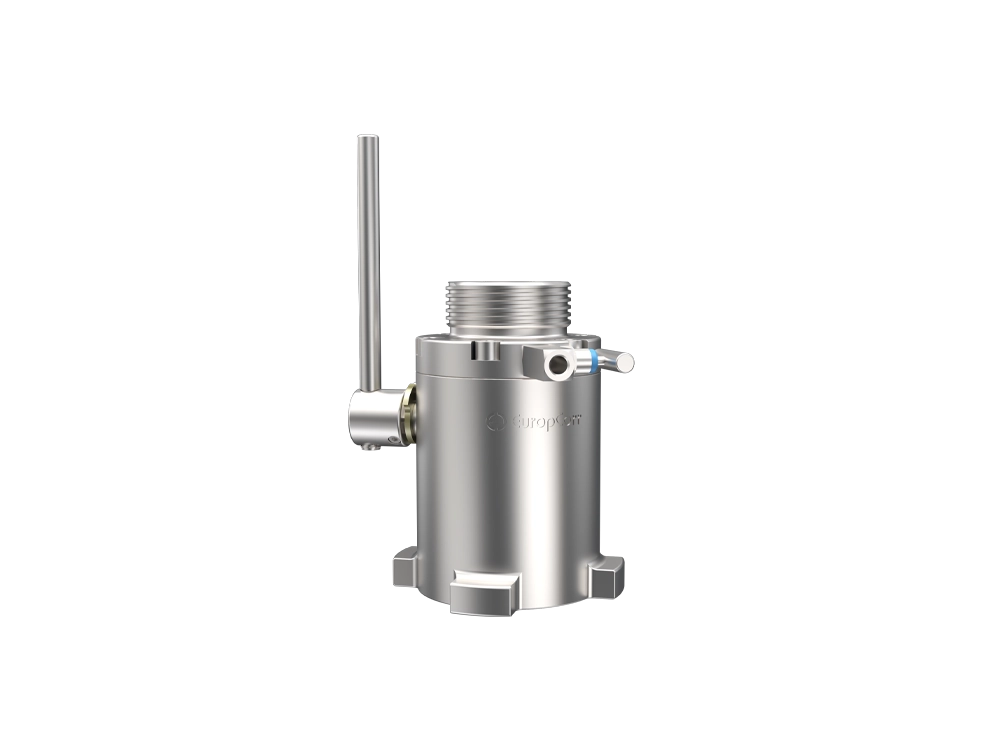

Mechanical Single Isolation Service Valve
Mechanical Single Isolation Service Valve
Mechanical Single Isolation Service Valve

Mechanical Single Isolation Service Valve

Mechanical Service Valve provides a temporary seal at the access point while the monitoring device is removed for inspection, maintenance or replacement.

Datasheet

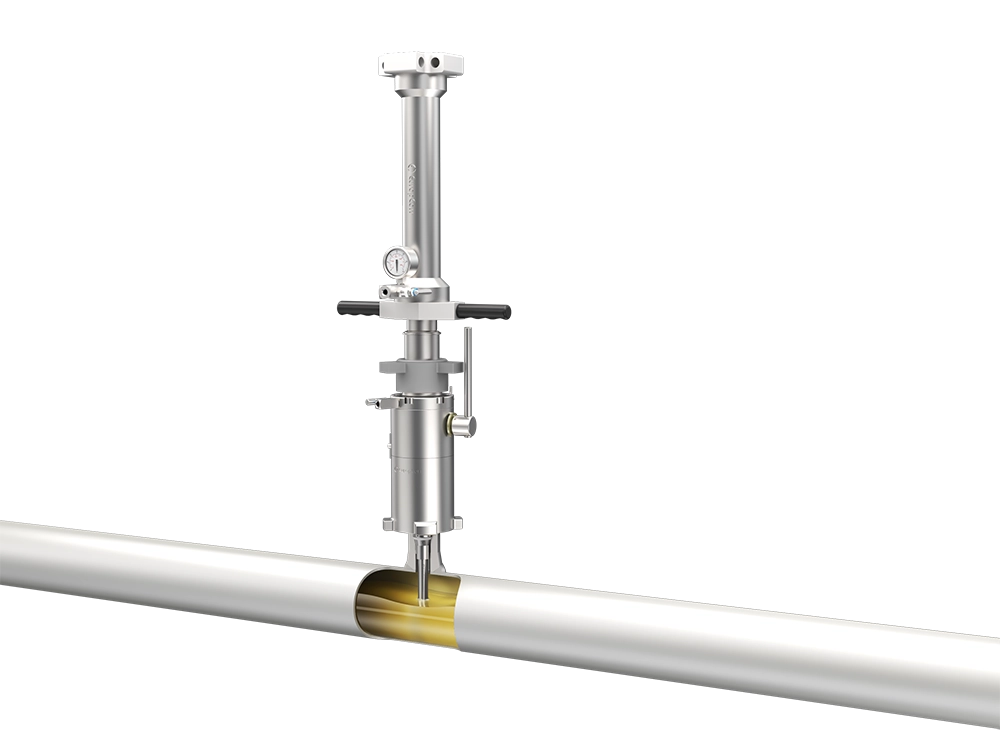

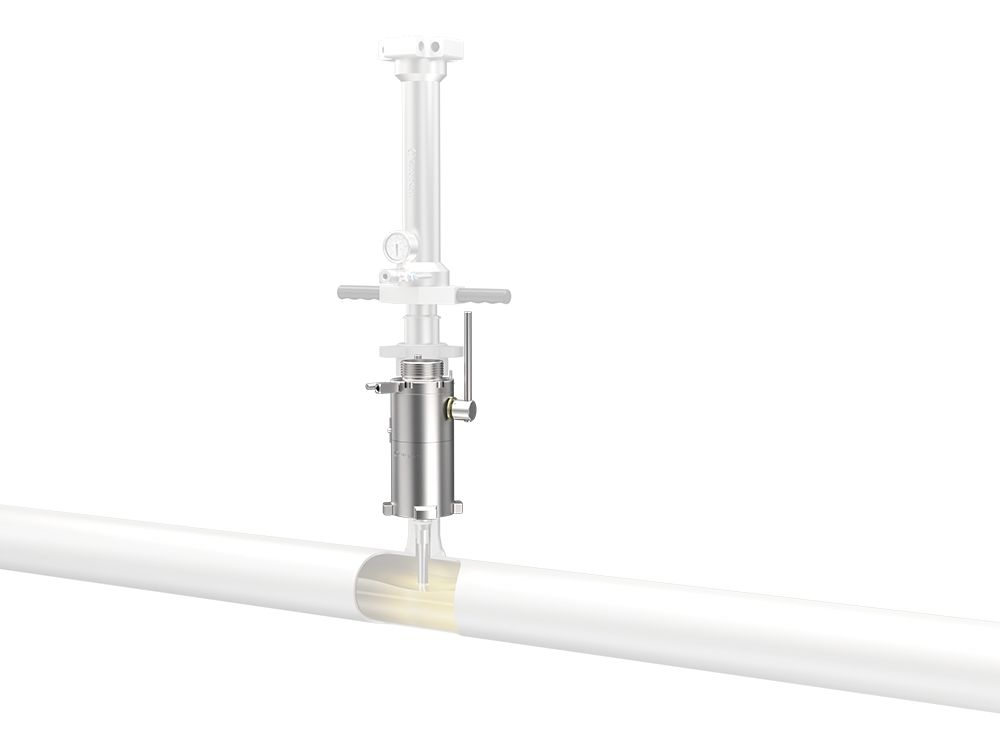

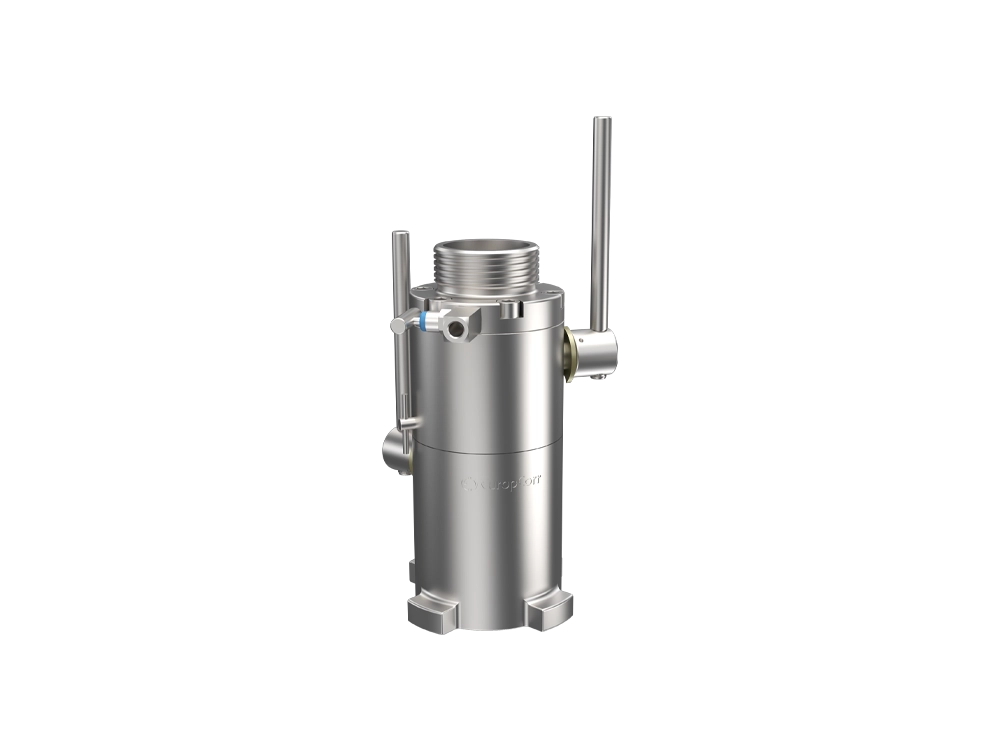

Mechanical Double Isolation Service Valve
Mechanical Double Isolation Service Valve
Mechanical Double Isolation Service Valve

Mechanical Double Isolation Service Valve

Mechanical Service Valve provides a temporary seal at the access point while the monitoring device is removed for inspection, maintenance or replacement. The two-bleed valve design is one of the safety features of Service Valve

Datasheet

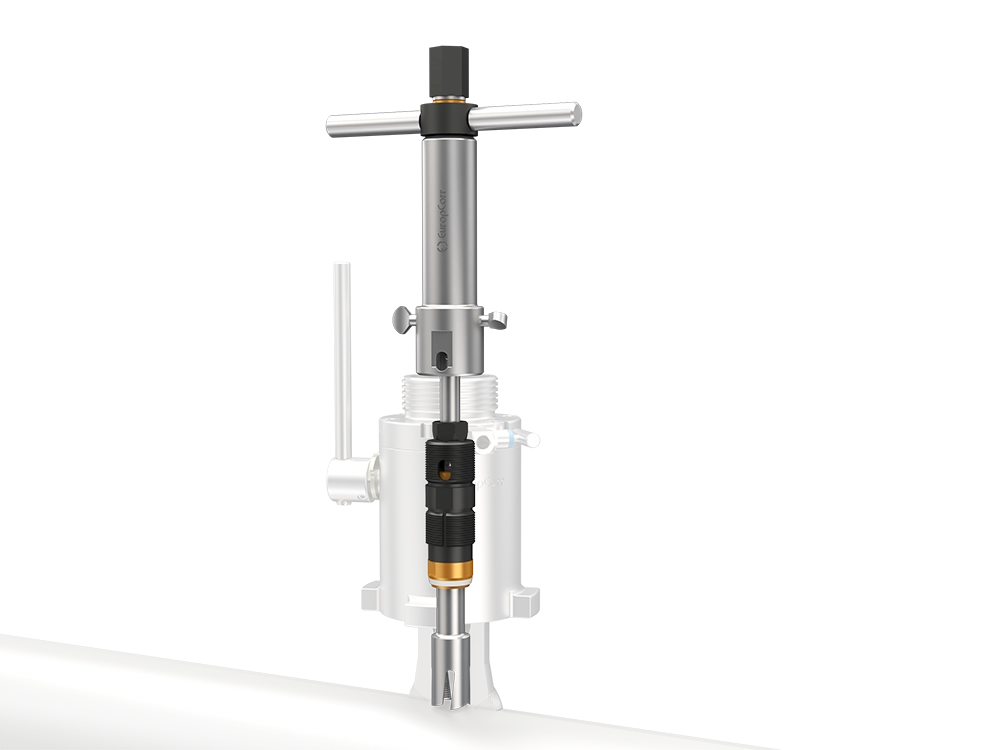

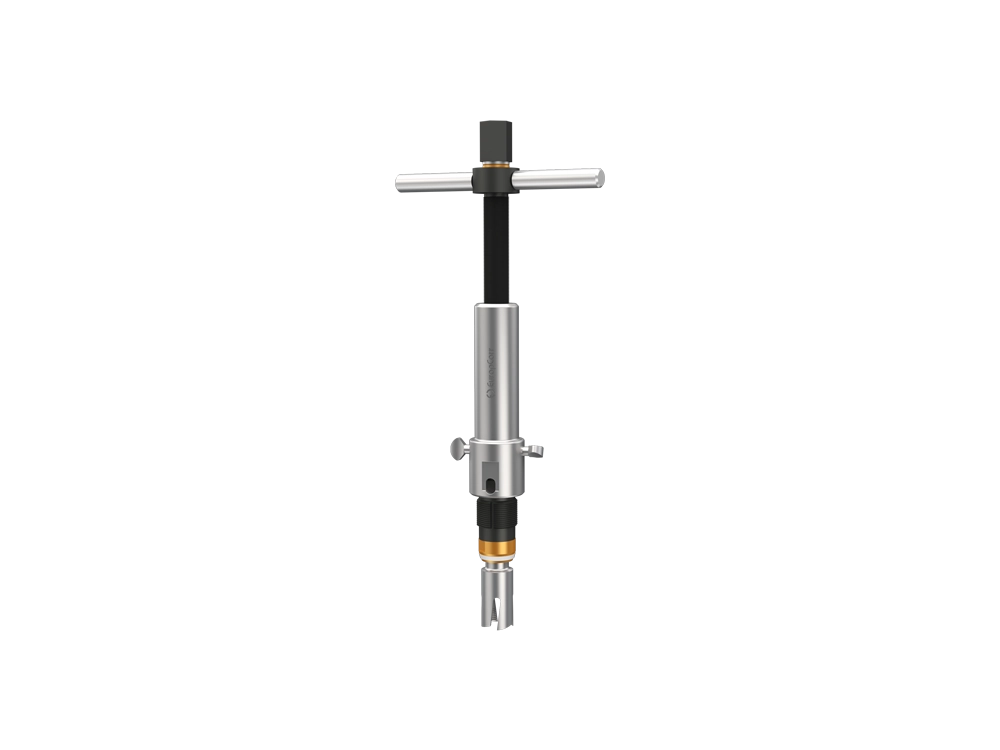

Mechanical Hot Tap Tool
Mechanical Hot Tap Tool
Mechanical Hot Tap Tool

Mechanical Hot Tap Tool

Hot Tap Tool is designed to provide a means of adding the Mechanical EuropCorr Access System to any pipeline or vessel already on stream without shutdown and without product loss.

Datasheet

Hydraulic System

Hydraulic Retrieval Tool Kit is specially designed for safe and easy installation and removal of monitoring devices from pipelines and vessels under fulline pressure through an EuropCorr Hydraulic Access System. This Kit is mainly composed of the Retrieval Tool and the Single or Double Service Valve. It is also supplied a Steel Brush, a Brass Hammer and a Purge Tube with Adapter, contained in a sturdy Field Service Box.

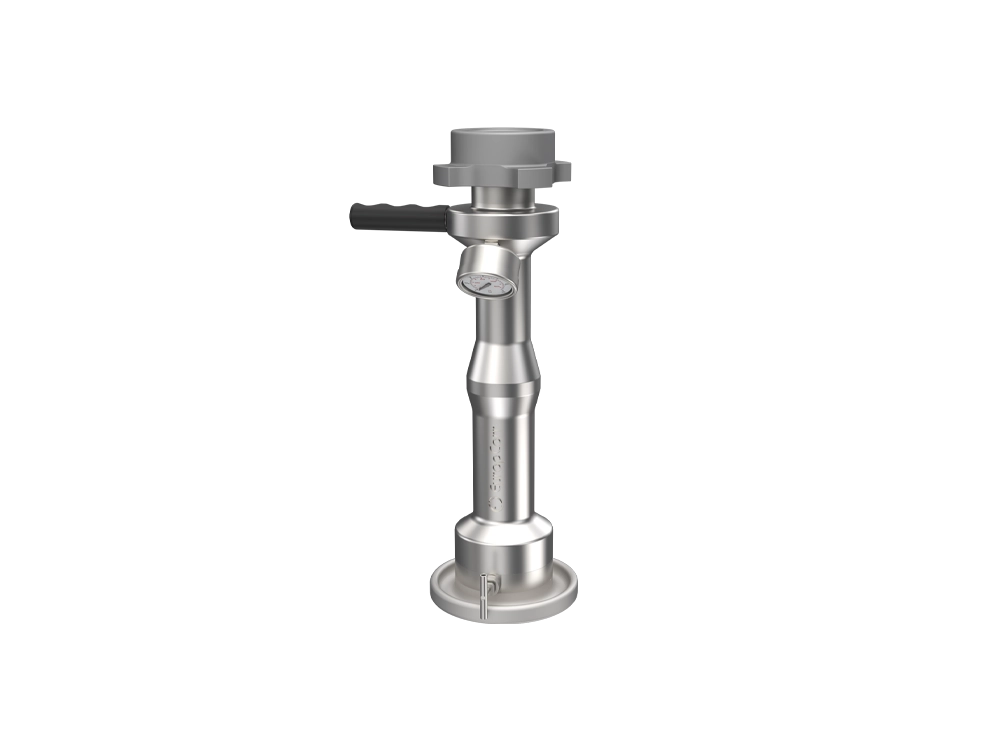

Hydraulic Retriever

Hydraulic Retriever

The Hydraulic Retriever is a tool designed for servicing all kinds of monitoring devices and injection & samplings assemblies using the 2” Hydraulic Access Fittings. Can be installed into or retrieved in normal operation, i.e. under full operational pressure.

Datasheet

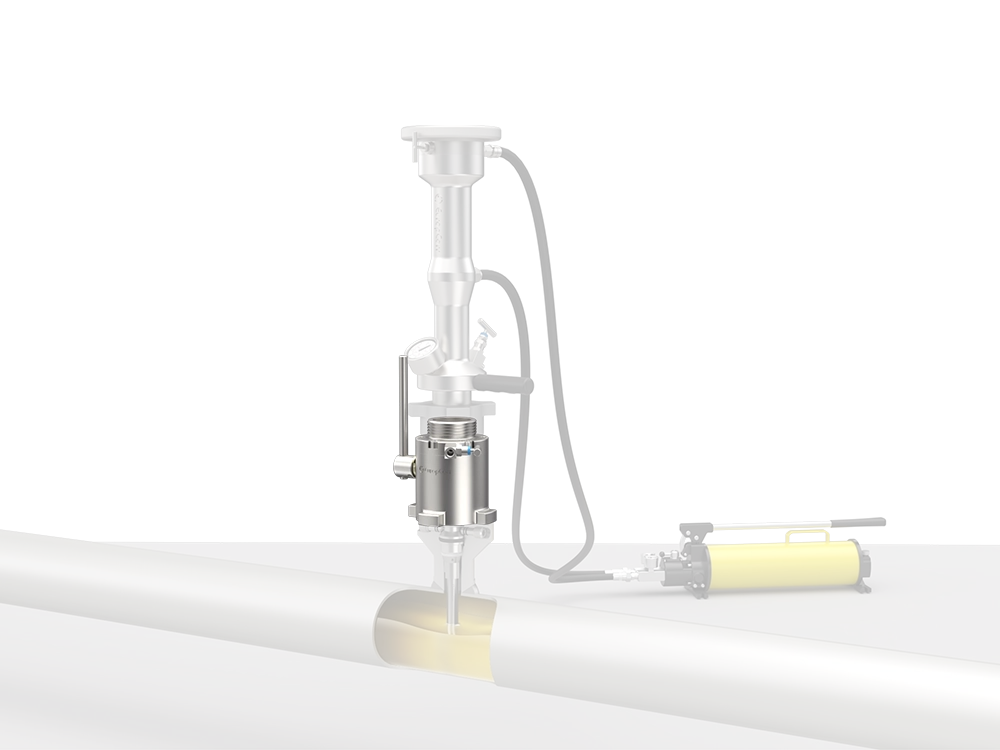

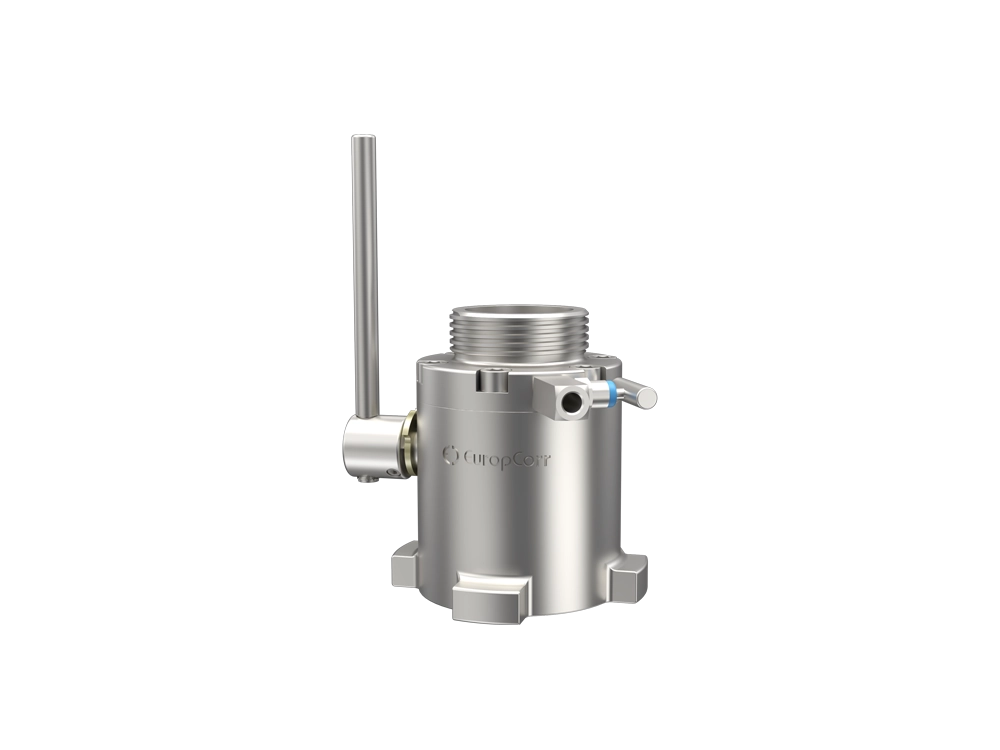

Hydraulic Single Isolation Service Valve

Hydraulic Single Isolation Service Valve

Hydraulic Service Valve provides a temporary seal at the access point while the monitoring device is removed for inspection, maintenance or replacement.

Datasheet

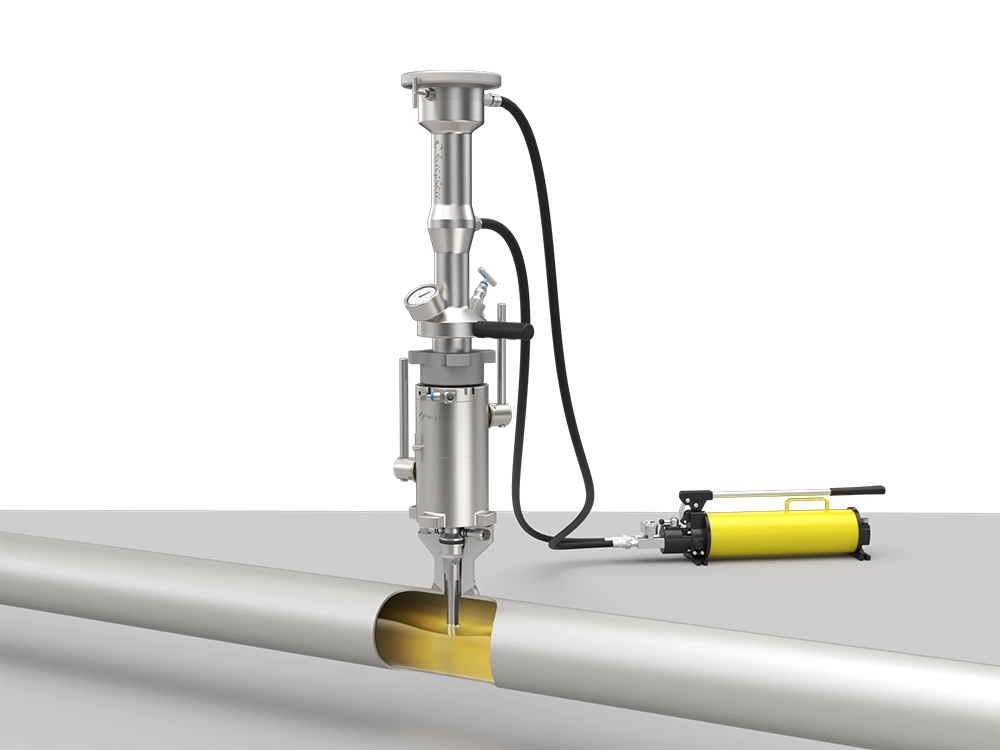

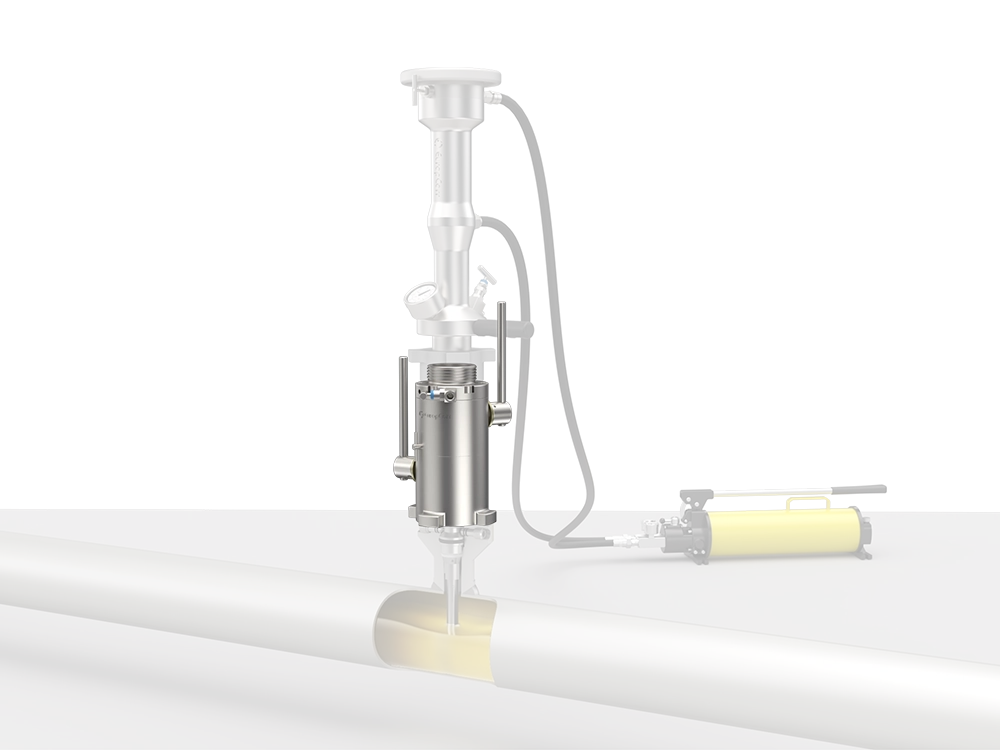

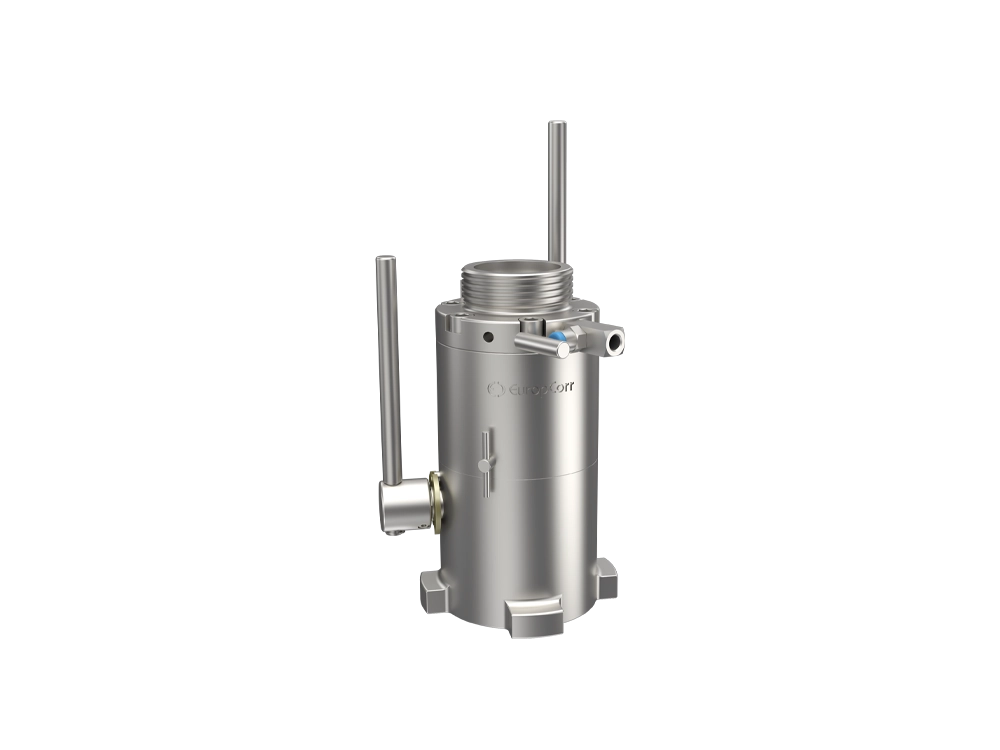

Hydraulic Double Isolation Service Valve

Hydraulic Double Isolation Service Valve

Hydraulic Service Valve provides a temporary seal at the access point while the monitoring device is removed for inspection, maintenance or replacement. The two-bleed valve design is one of the safety features of Service Valve.

Datasheet

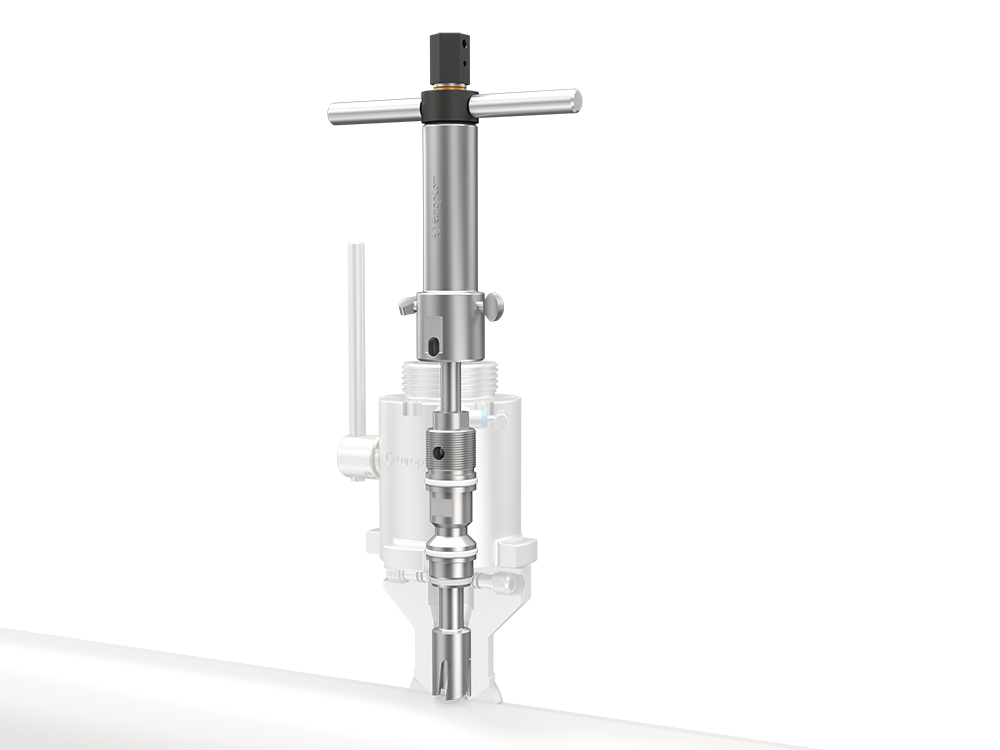

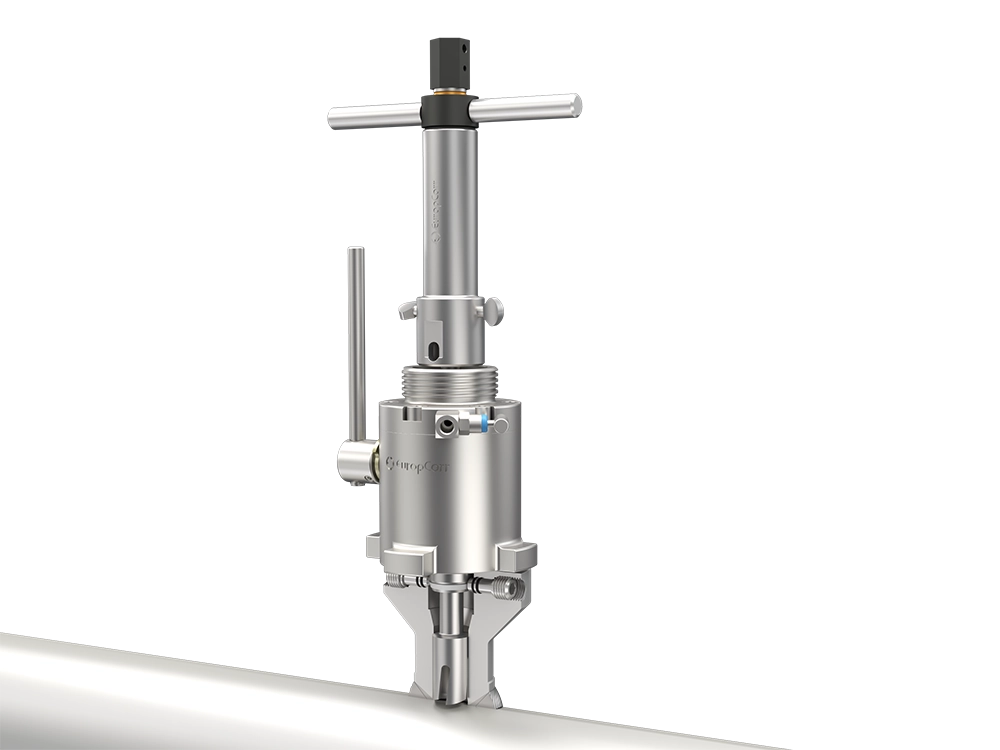

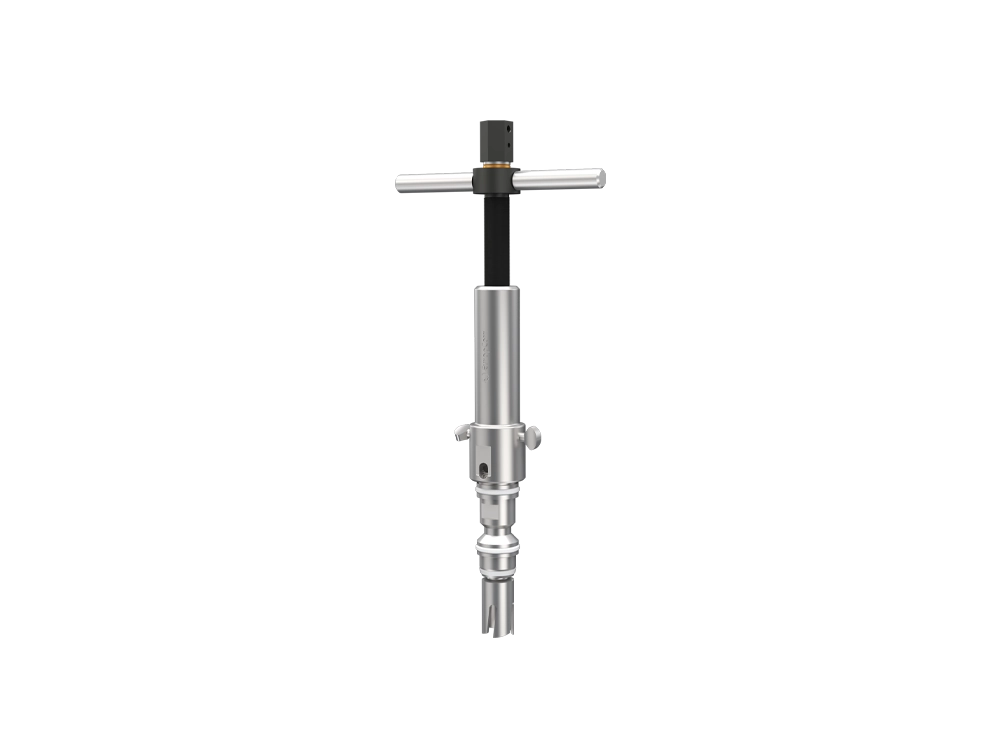

Hydraulic Hot Tap Tool
Hydraulic Hot Tap Tool
Hydraulic Hot Tap Tool

Hydraulic Hot Tap Tool

Hot Tap Tool is designed to provide a means of adding the Hydraulic EuropCorr Access System to any pipeline or vessel already on stream without shutdown and without product loss.

Datasheet

Advantages of Hydraulic System

In comparison with traditional Mechanical system, the Hydraulic configuration is the preferred technique for safe and easy installation and retrieving of monitoring devices such as Corrosion Coupons, Corrosion & Erosion Probes, Chemical Injection & Sampling.

The system has important advantages from operational and safety point of view:

1. EASE OF ALIGNMENT

Precise alignment of tool and monitoring device in an access fitting of a pressurized system.

2. NO INTERNAL THREADS

Connections between hydraulic fitting and plug avoid galling and seized plugs caused by particles in the process.

3. COMPATIBILITY

Any mechanical system can be converted into hydraulic configuration through a suitable hydraulic adapter and a plug.

4. NO EXTERNAL MOVING PARTS

Increased safety to operators and assets.

5. SMALLER, SHORTER AND LIGHTER

Increased accessibility due to less operational space required.

6. OPERATED FROM DISTANCE

2 or 3 meters away from the high-pressure point via a hydraulic pump minimising the risk of exposure to operators.

_______

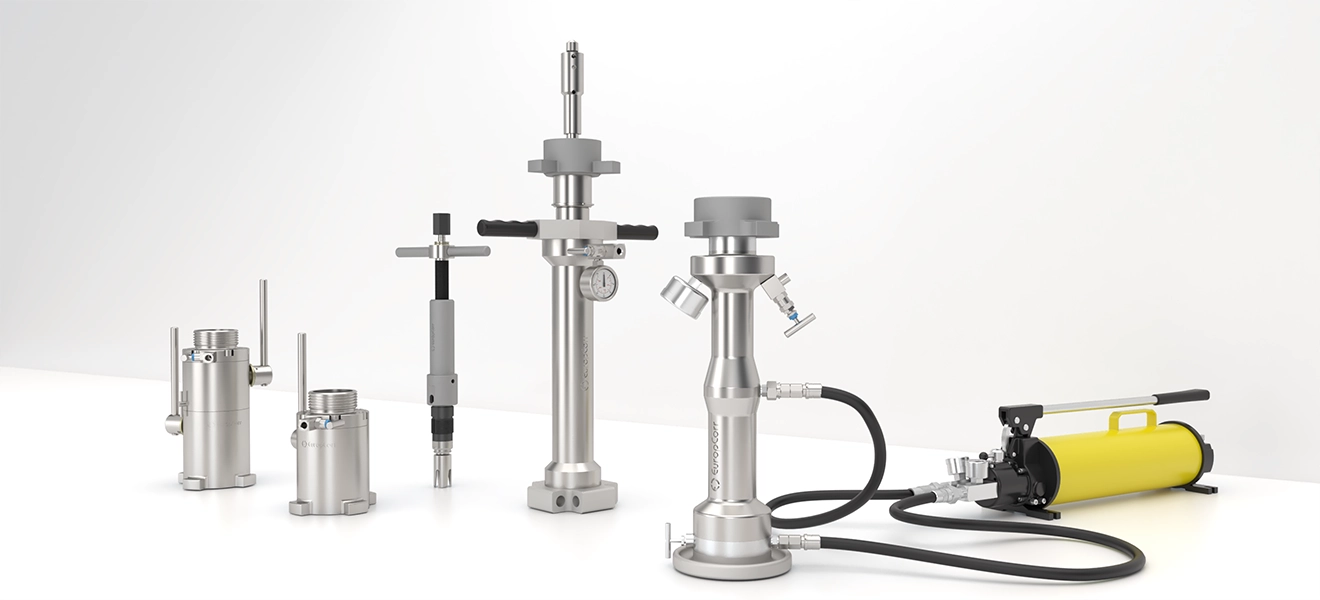

Retrieval Tool Kit and Hot Tap Tool

Retrieval Tool Kit is specially designed for safe and easy installation and removal of monitoring devices from pipelines and vessels under fulline pressure through a EuropCorr Access System. This Kit is mainly composed of the Retrieval Tool and the Single or Double Isolation Service Valve.

The main components of Retriever Tool and Service Valve are manufactured from stainless steel, and they receive a chroming treatment for resistance to mechanical/corrosion damage and to ensure many years of reliable service. Retriever Tool and Service Valve are hydro tested after assembly to ensure proper field performance. Depending on the length of monitoring equipment being installed, one Retriever Tool and one Service Valve may be used to service many Access Fitting locations.

EuropCorr offers two types of Retrieval tool kits, one for the Mechanical Access System and another for the Hydraulic Access System. In comparison with Mechanical System, Hydraulic configuration is safer and more reliable for installation and retrieving under full operating pressure.
